Chipboard in Doors, Floors and Furniture Frames

Particle board is the panel most people have handled without knowing it, hidden inside flat-pack carcasses, door cores and flooring systems. Dongstar publishes it in 18 mm at the top, down through 15, 12, 11 plus 9 mm as standard to 8 mm thicknesses at 1220 × 2440 mm or a customised size, with strands and particles drawn from poplar, pine and eucalyptus and a resin list that covers MR, the E2/E1/E0 classes, ENF, PMDI, WBP and melamine, as stated on the manufacturer's own pages, read 29 Sept 2026.

What chipboard is made of, and why that matters to a buyer

The manufacturer's own definition is the best starting point: chipboard is made from wood particles — chips, sawmill shavings and other wood residues — bonded together with a synthetic resin adhesive. That description is not a disclaimer; it is the reason the panel behaves the way it does. Because the raw material is a mix of particle sizes rather than a peeled veneer, the panel is uniform in density in a way that a natural timber board is not, which is exactly what a machining centre wants.

Uniform density also means the panel has no grain to fight. It will not cup along a ring pattern the way a solid board can, and it cuts to the same dimension in both directions. The trade-off is edge strength: a particle core does not hold a screw in the edge as tenaciously as a denser core, which is why door and frame work uses the material in ways that either hide the edge or reinforce it. Knowing both halves of that trade is what makes the panel a good choice rather than a compromise. A Chipboard Particle Board specification that names the thickness, the resin class and the application settles most of that in advance, before the first sheet is cut.

Doors and door cores

Doors are one of the four application areas the manufacturer names, and the fit is straightforward. A door leaf needs a flat, stable core that will not move with the seasons, and it needs weight that can be controlled. Particle board supplies both: the panel is pressed flat, and it can be produced at a thickness that, combined with a skin or a veneer, lands inside a target weight band for the finished leaf rather than at an arbitrary figure.

Door cores have an additional requirement that the published specification addresses directly. A core for a fire or acoustic assembly needs consistent density through the whole panel, because a single low-density patch undermines the whole leaf's performance. A panel produced from a consistently formed particle mat is easier to certify for that purpose than one assembled from mixed offcuts. Whereas a decorative board is judged on its face, a core is judged on what nobody sees.

Flooring systems

The flooring role named by the manufacturer is as a substrate for laminate and engineered wood flooring, which is a load-spreading job more than a wearing-surface job. The panel sits between the joists or the slab and the finished floor, and its task is to stay flat, keep the finished surface from moving, and hold the fasteners that fix the system together.

Thickness selection follows from that. An 18 mm panel spans more than a 12 mm panel before it deflects noticeably, so the joist spacing in the build decides the thickness, not the other way round. Where the substrate sits over a humid slab, the resin specification becomes the second decision: the manufacturer's published options include water-resistant resins described for outdoor and humid environments, and choosing one for a ground floor is cheap insurance against the substrate swelling under a finished floor that is expensive to lift.

Interior and decorative panels

The second application area covers wall panelling, ceilings, partitions and decorative screens. In this work the panel is often the substrate under a face — a melamine sheet, a laminate, a veneer or a paint system — and the important property is flatness. A decorative surface amplifies any substrate irregularity, which is why particle board is pressed flat rather than sanded smooth afterwards.

Screw holding along the face is the other property that matters here. Fixing a hanging rail, a bracket or a screen frame into the face of a chipboard panel works reliably because the fasteners pass through the panel's plane rather than into its edge. It is the edge fixing, not the face fixing, that needs the extra care, and the standard practice of pre-drilling near a panel edge is what keeps a decorative installation from splitting.

Furniture manufacturing and the resin question

Furniture is the first application the manufacturer names, and the description is precise: a stable and cost-effective substitute for solid wood. That combination is what moved the material into mass-market cabinetry. A cabinet carcass made from a uniform panel keeps its dimensions across a run of ten thousand units, which solid timber cannot promise without repeated machining and grading.

The resin list is where a furniture buyer should slow down. MR is described as the economical choice for interior use. E2, E1 and E0 are formaldehyde release classes, with E2 the highest figure of the three and E1 and E0 lower. ENF is described as environment friendly, PMDI as combining strength with moisture resistance, and WBP and phenolic as water resistant for outdoor and humid work. Melamine resin is described as moisture resistant with a good surface. For furniture that will be sold into a market with a formaldehyde limit, the release class is not an optional field. Chipboard in this range is produced by Dongstar Group at its base in Linyi city, China.

Worked example: working out a flooring substrate order

A contractor has 480 m² of ground-floor substrate to lay. In the 1220 × 2440 mm format the metric area of one panel is 2.98 m² (1.22 m × 2.44 m; example), so a straight division gives 480 ÷ 2.98 = 161 sheets. Add a 6% cutting allowance for the perimeter and door openings: 161 × 1.06 = 171 sheets (example).

Now test the thickness. If the joists are set at a spacing that the manufacturer's 18 mm panel covers, the order stands at 171 sheets at 18 mm. If the build can accept a 15 mm substrate because the spans are shorter, the same area needs the same sheet count at a lower weight per sheet — 171 sheets at roughly 0.0536 m³ each at 18 mm against 0.0447 m³ at 15 mm, a reduction of about 15% in volume moved (example). Whether that swap is permissible is a structural question, not a purchasing one, and the answer should come from whoever set the joist spacing rather than from the panel supplier. What the published data settles is the order size: 171 sheets, one format, one thickness, one resin class, written down.

Frequently asked questions

Is chipboard strong enough for a door core?

Doors and door cores are one of the four application areas the manufacturer names. The relevant property is uniform density through the panel, which is what a consistently pressed particle mat provides and what a decorative face cannot substitute for.

How do I choose the formaldehyde class?

The published classes are E2, E1 and E0, with E2 the higher figure and E1 and E0 lower, alongside ENF which is described as environment friendly. The class should be chosen to match the market the finished furniture is sold into.

Why pre-drill near a panel edge?

Particle board holds a screw well in the face and less well in the edge, because the edge exposes individual particles rather than a continuous structure. Pre-drilling gives the fastener a clean path and reduces the risk of splitting the edge.

Where to take the specification next

Anyone fitting a decorative face over a particle substrate can compare the alternatives on the melamine-faced panel page, which is the most common pairing for this core, and can read how the group's production and export operations are organised before a first order is placed. Writing the thickness, the class and the resin on the order is what turns a generic panel enquiry into a specification.

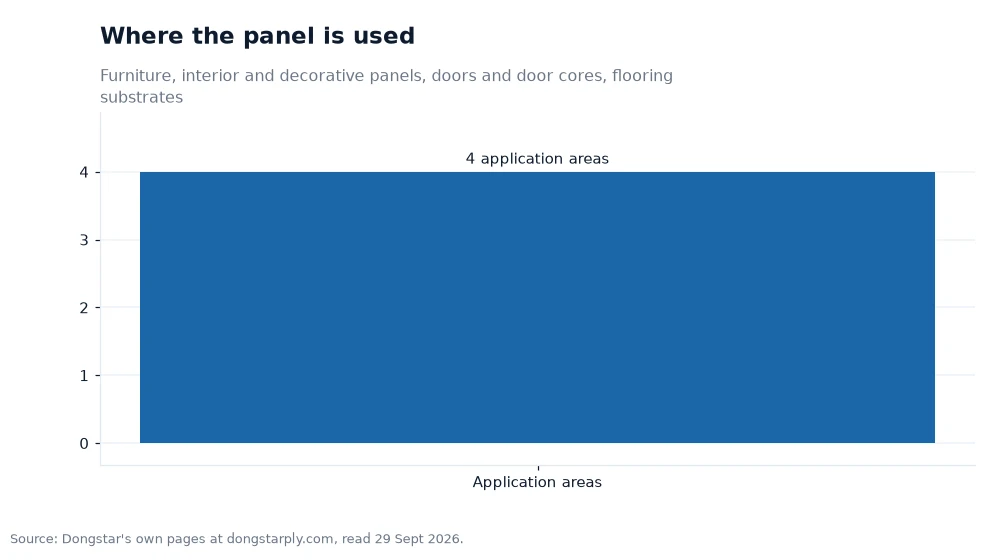

The application lists, size and thickness ranges, raw material description and resin classes quoted above are on the maker's own website, consulted on 29 Sept 2026, and used throughout the chart above^[1].
